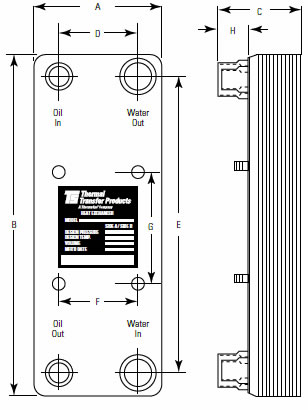

BPS Series Hydraulic Oil Cooler   Stainless steel brazed plate coolers for various applications.         Products:     Water-to-Oil Cooling     - Stainless Steel Construction - Corrosion Resistant TYPE 316   - Stacked Plate - Mounting Studs Standard   - Copper Brazed - SAE Oil Connections   - High Performance - NPT Water Connections   - Compact Design - Optional Mounting Bracket   - SAE Connections - Nicke/Chrome Options   Ratings:   Maximum Temp: 350 F at 450psi   Maximum Pressure: 450psi   Test Pressure: 600psi   Materials:   Plate Material: 316L Stainless   Braze Material: Copper Standard   Stud Bolts: 304 Stainless   F/B Pressure Plates: 304 Stainless   Connectors: 304 Stainless   Foot Brackets: 304 Stainless   Dimensions: Model A B C D E F G H Oil SAE Water NPT Net Wt Lbs SAE NPT BPS-12-12x5 4.9 12.2 2.61 2.7 9.9 2.5 3.5 1.25 1.12 #12 3/4 8 BPS-24-12x5 3.75 12 BPS-36-12x5 5.00 1.5 1.25 #20 1-1/2 16 BPS-70-12x5 8.19 27 BPS-24-20x10 9.8 20.3 3.99 6.5 17.0 4.0 5.5 1.75 1.38 #24 1-1/2 39 BPS-50-20x10 6.44 68 BPS-80-20x10 9.25 100 NOTE: We reserve the right to make reasonable design changes without notice. Dimensions are in inches. SAE Connection Thread Forms: #12 SAE = 1-1/16 - 12UN-2B #20 SAE = 1-5/8 - 12UN-2B #24 SAE = 1-7/8 - 12UN-2B NPT Connections are internal threads (female).   Quotes & Ordering Information: Thermal Transfer BPS Series, please contact us: 1-888-226-8522
